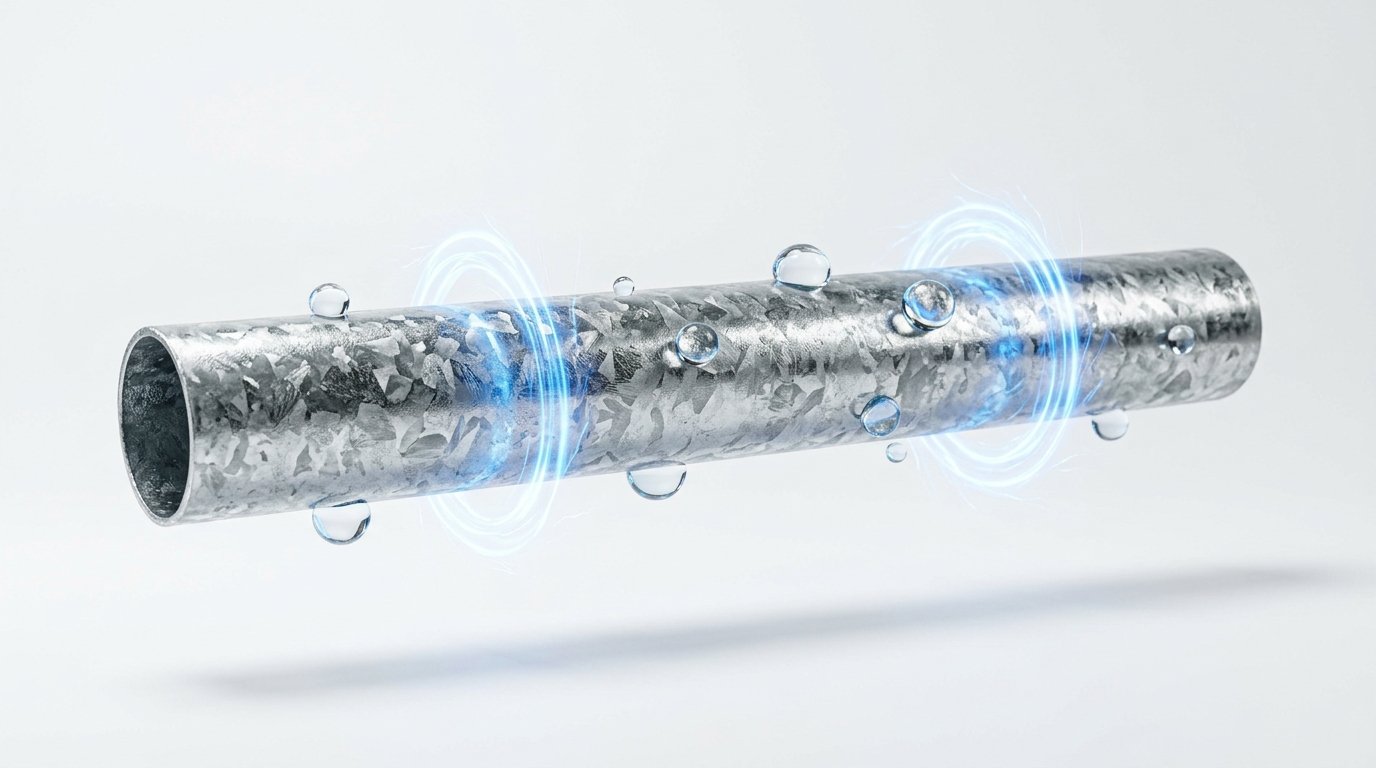

Hot-dip galvanized steel pipe in Light (A), Medium (B) & Heavy (C) class, DN15–DN150, screwed & socketed or plain-end. Held available across Qatar, the UAE and Saudi Arabia for water, plumbing, fire-fighting and fabrication — with material test certificates.

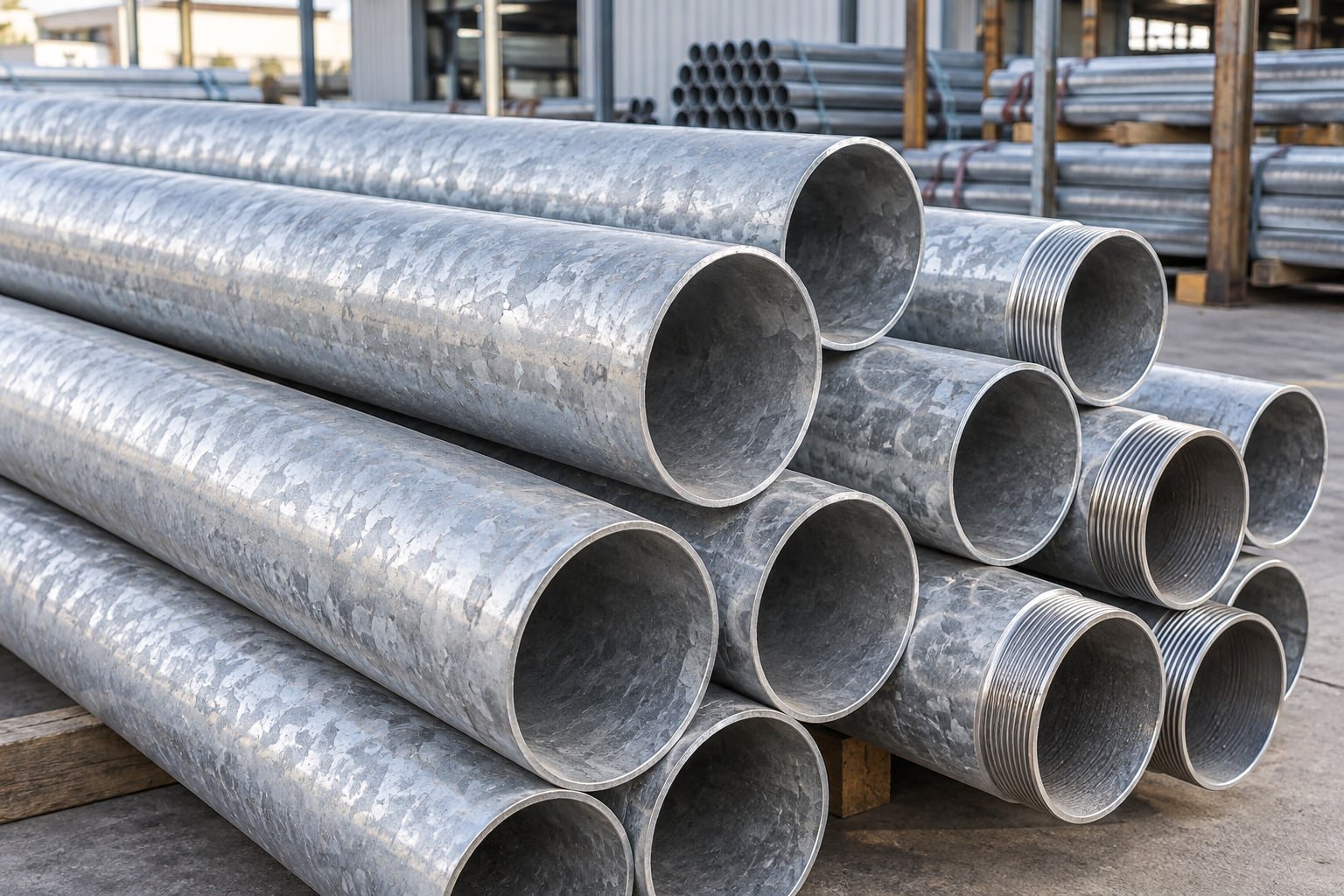

GI pipe stands for Galvanized Iron pipe — a mild steel pipe coated with a protective layer of zinc by hot-dip galvanizing. The zinc coating shields the steel from rust and corrosion, giving the pipe a long service life in water and outdoor environments. GI pipe is one of the most widely used pipes for water supply, plumbing, fire-fighting and general fabrication across the GCC.
GI pipe is manufactured to BS 1387, EN 10255 and ASTM A53, hot-dip galvanized to BS EN ISO 1461, and supplied in three wall-thickness classes — Light (Class A), Medium (Class B) and Heavy (Class C) — from DN15 (½″) to DN150 (6″), either screwed & socketed or plain-end.
Thinnest wall, lowest pressure rating. General low-pressure water & non-critical lines.
The most common class — plumbing, water distribution and structural use. Best all-round balance.
Thickest wall, highest pressure rating. Fire-fighting mains and higher-pressure service.
| Nominal bore | OD (mm) | Light (A) kg/m | Medium (B) kg/m | Heavy (C) kg/m |
|---|---|---|---|---|
| ½″ (DN15) | 21.3 | 1.13 | 1.22 | 1.45 |
| ¾″ (DN20) | 26.9 | 1.46 | 1.57 | 1.90 |
| 1″ (DN25) | 33.7 | 2.14 | 2.44 | 2.97 |
| 1¼″ (DN32) | 42.4 | 2.79 | 3.14 | 3.84 |
| 1½″ (DN40) | 48.3 | 3.24 | 3.61 | 4.43 |
| 2″ (DN50) | 60.3 | 4.11 | 5.03 | 5.92 |
| 3″ (DN80) | 88.9 | 6.81 | 8.36 | 9.89 |
| 4″ (DN100) | 114.3 | 9.75 | 12.10 | 14.40 |
| 6″ (DN150) | 165.1 | 17.10 | 21.20 | 25.20 |
Indicative weights per metre. Need a specific size or total tonnage? Use our pipe weight calculator or request a quote.
Potable & raw water distribution, risers and building services.
Hot & cold water lines, sanitary and MEP installations.
Sprinkler & hydrant mains (heavy class), often red-coated.
Structural & scaffolding use, fencing, handrails and supports.
Tell us the class (Light/Medium/Heavy), sizes and quantities — we'll quote with weights, MTC and delivery terms for Qatar, the UAE and KSA.
